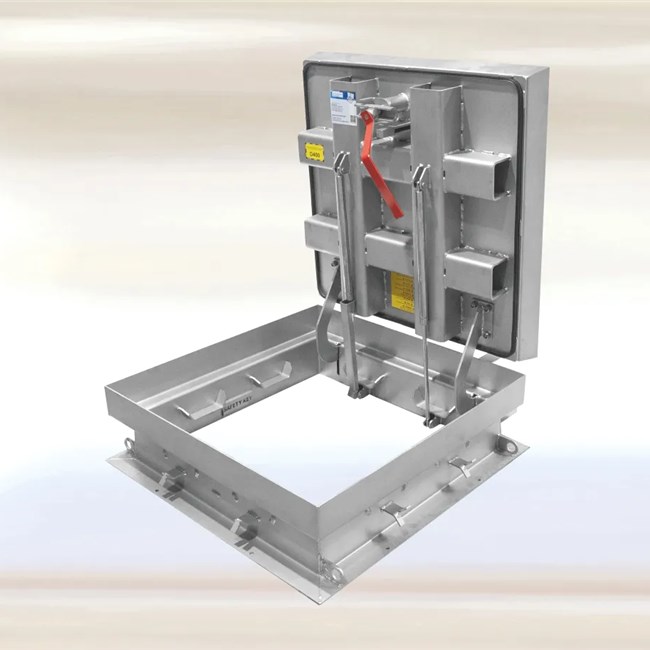

The MA-WB floor access cover system is made of 5 mm thick stainless steel.
The installation height is 75 mm.
The frame is equipped with a special seal that is resistant to frost and weather conditions, providing protection against water infiltration and odor leakage.
The frame is fixed by pouring concrete flush with the floor level. The tray can then be filled and inserted into the frame.
The cover is supported by two high-quality gas struts, allowing a single person to open and close the cover easily.
Safety is ensured by a fall-protection device.
The tray can be filled with various types of flooring materials such as stone, tiles, concrete, resin, granite, wood, and other hard flooring materials.
Outer frame size: Clear opening + 150 mm
Key advantages of our system:
-
Assisted opening
-
Available in two versions
-
Equipped with a frost- and weather-resistant sealing gasket
-
Fixing brackets for secure anchoring
-
Tray secured to the frame with screws
-
Includes reinforcing crossbars
Load Capacity
Version 1 Strong: Class B125 according to EN 124 standard
Version 2 Ultra Strong: Class D400 according to EN 124 standard
Application Area
For floor ducts both indoors and outdoors, where the highest quality is especially valued and suitable for heavy loads.
Opening and Installation
Equipped with a tightening/lifting key and an installation manual.
Installation must be performed professionally, with particular attention to ensuring the special gasket fits tightly against the frame profile.
Closure
The cover is equipped with a screw closure with a protective brass cap.
Optional security cylinder lock (cylinder length 41.5 mm).
