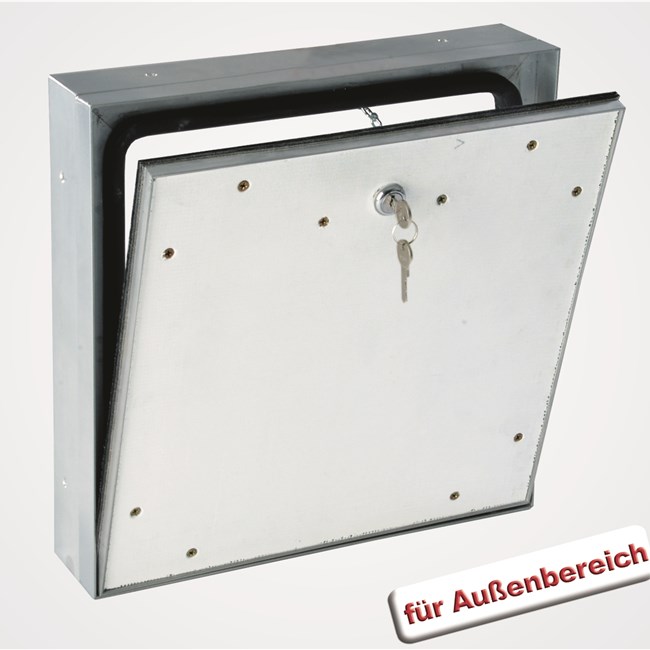

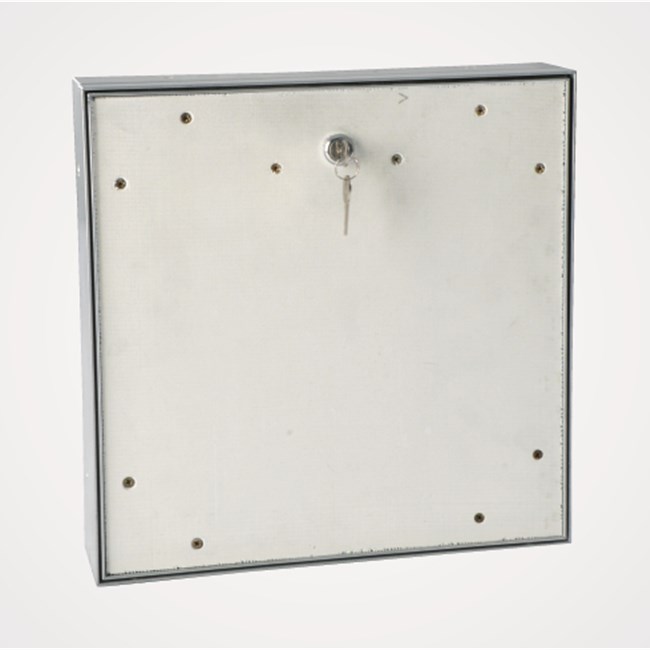

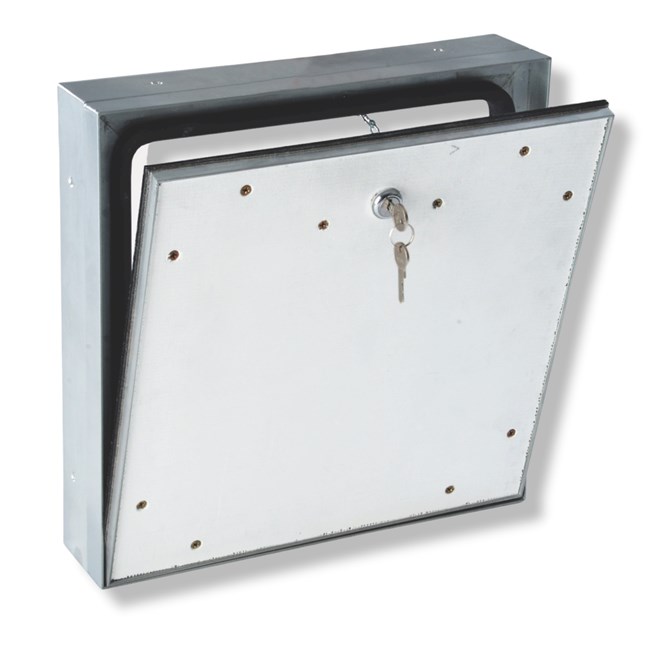

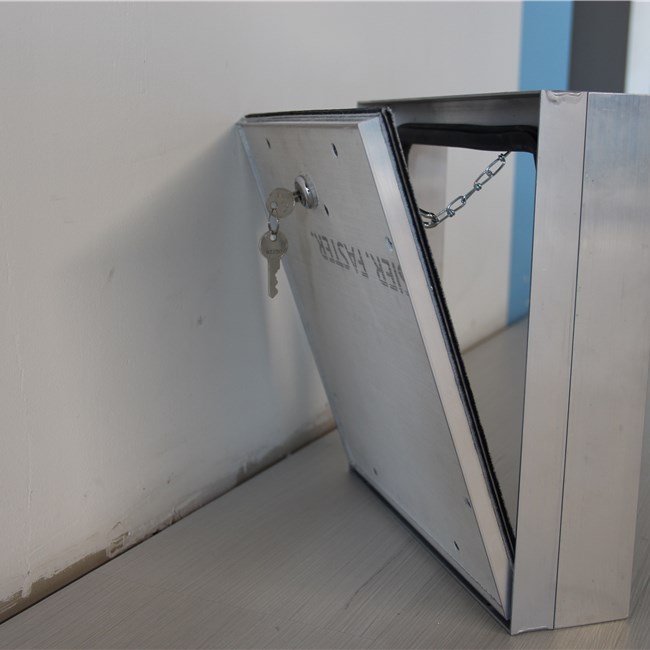

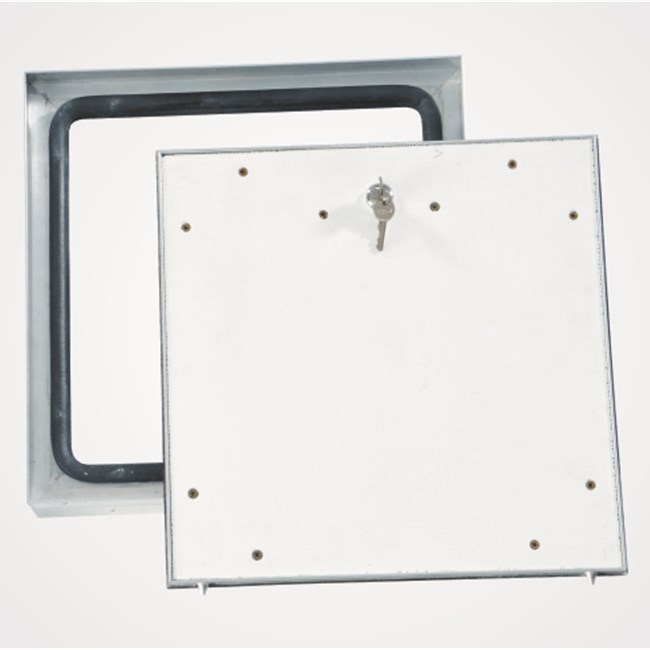

The inspection access panel is made of aluminum profiles with a cement board and a cylinder lock with a key.
No snap lock is provided to avoid malfunctions in outdoor environments.
The frame thickness is 15 mm, while the cement board has a thickness of 12.5 mm, recessed to allow for finishing at thickness.

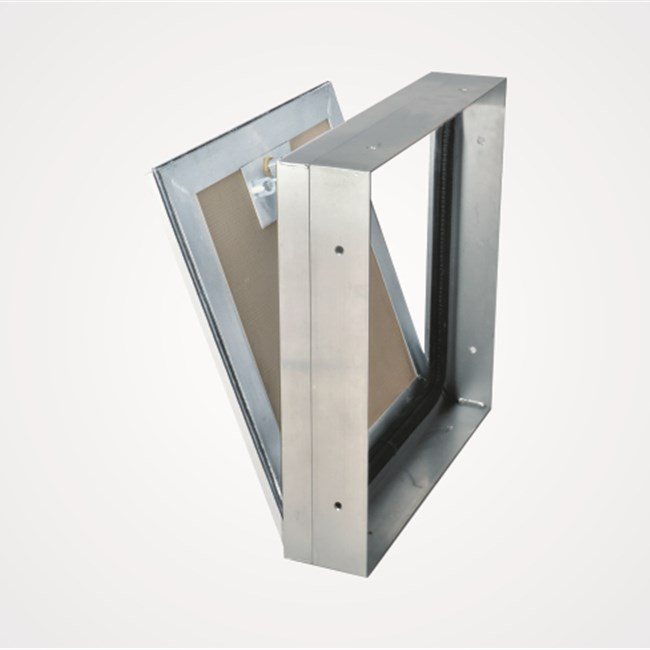

The external frame has a thickness of 60 mm and is designed for application on block or brick walls, thanks to anchor brackets or the option for fixing with dowels.

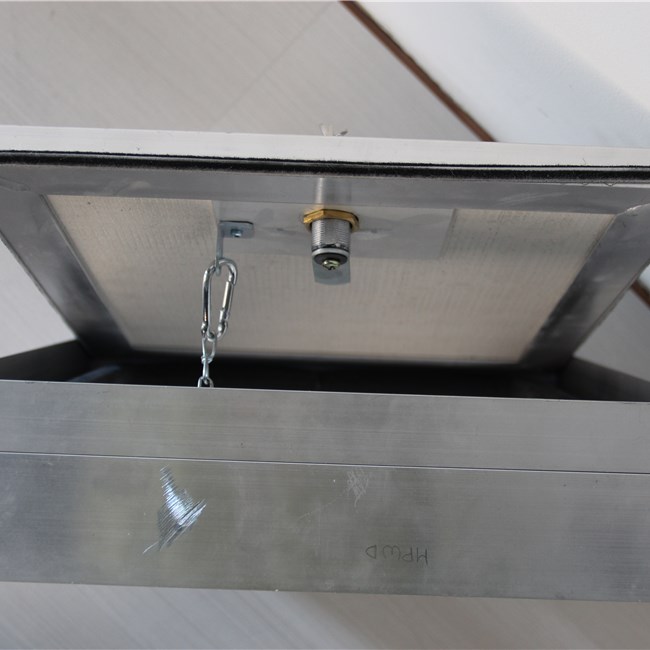

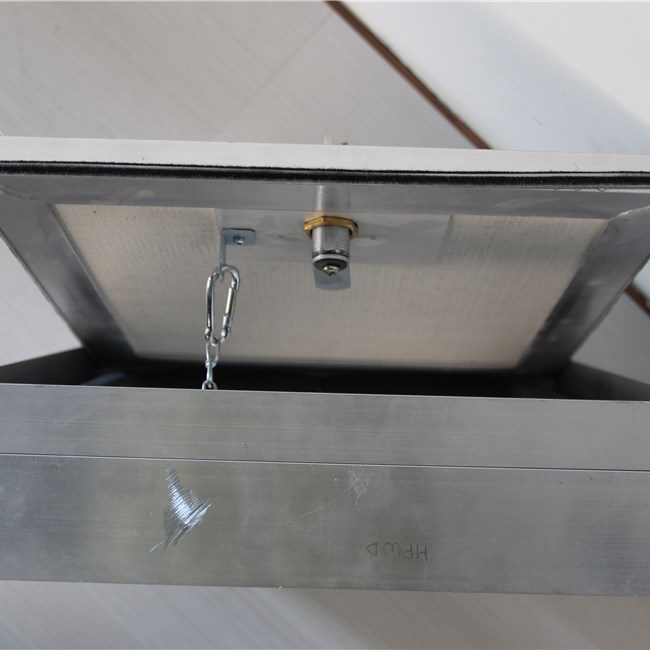

The access panel is supplied with one or more safety cables with carabiners to be reattached after each opening of the door.

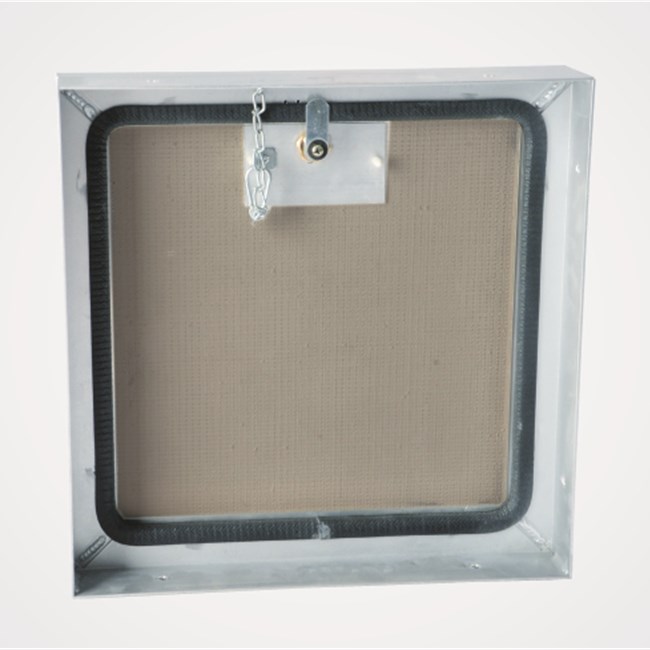

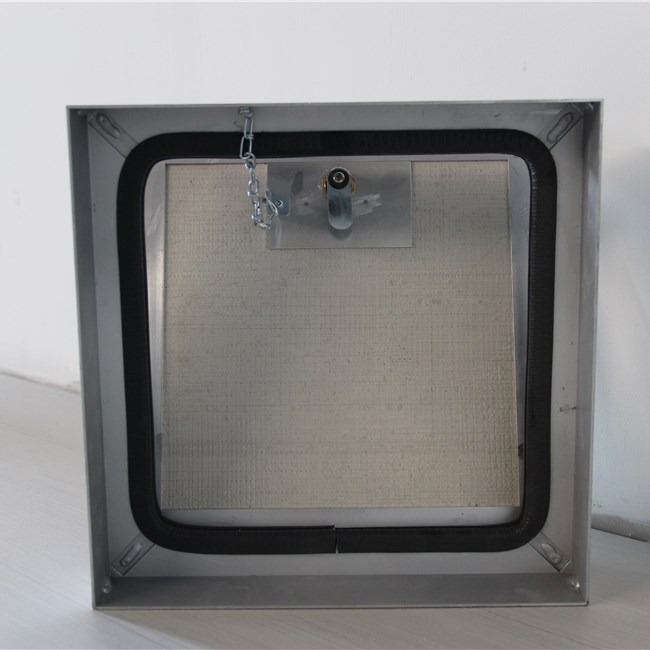

There is a 3 mm gap between the frame and the door, where a gasket for air and dust tightness is applied, along with another special pressure gasket for weather protection.

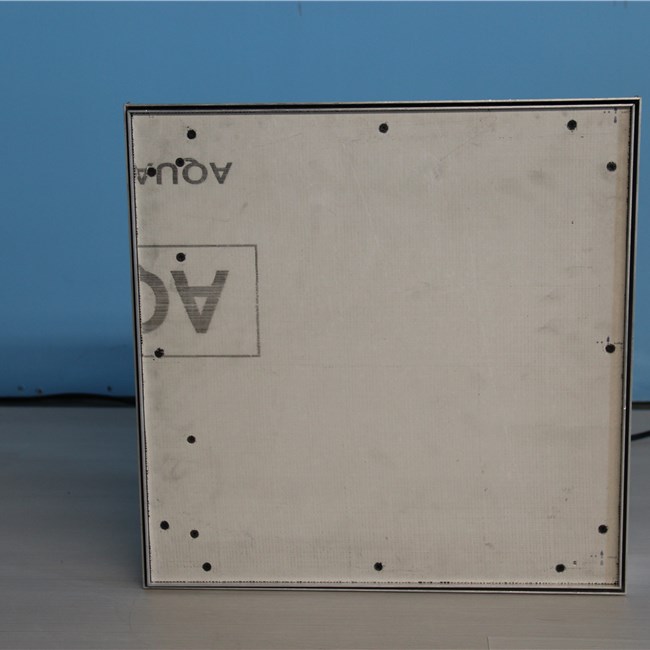

The inspection access panel is "RAIN-TIGHT" according to EN 1027 standards:
Test Report FEA220114_00_00TR (GiB GmbH Arnstorf)

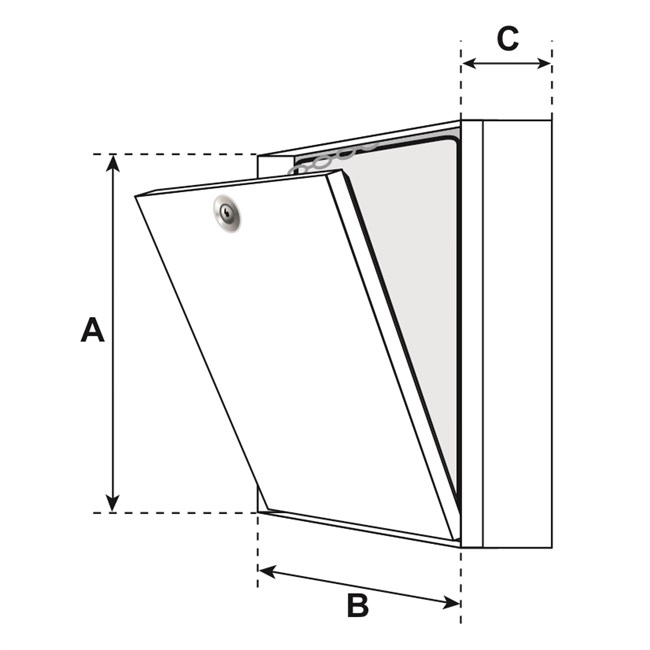

A and B = internal dimensions of the outer frame
C = 78 mm
Wall opening: door size + 5 mm
Clear opening: door size - 56 mm
Custom-made production according to requirements.
Key advantages of our system:
-
Cost-effective solution
-
Fast delivery times
-
Quick and hassle-free installation
-
Sturdy aluminum profiles
-
Proven technical solution
-
Rapid installation on facades
